Sidewall Conveyor Belt
Reliable Belts, Exceptional After-Sales Service—Count on Us
Sidewall Conveyor Belt

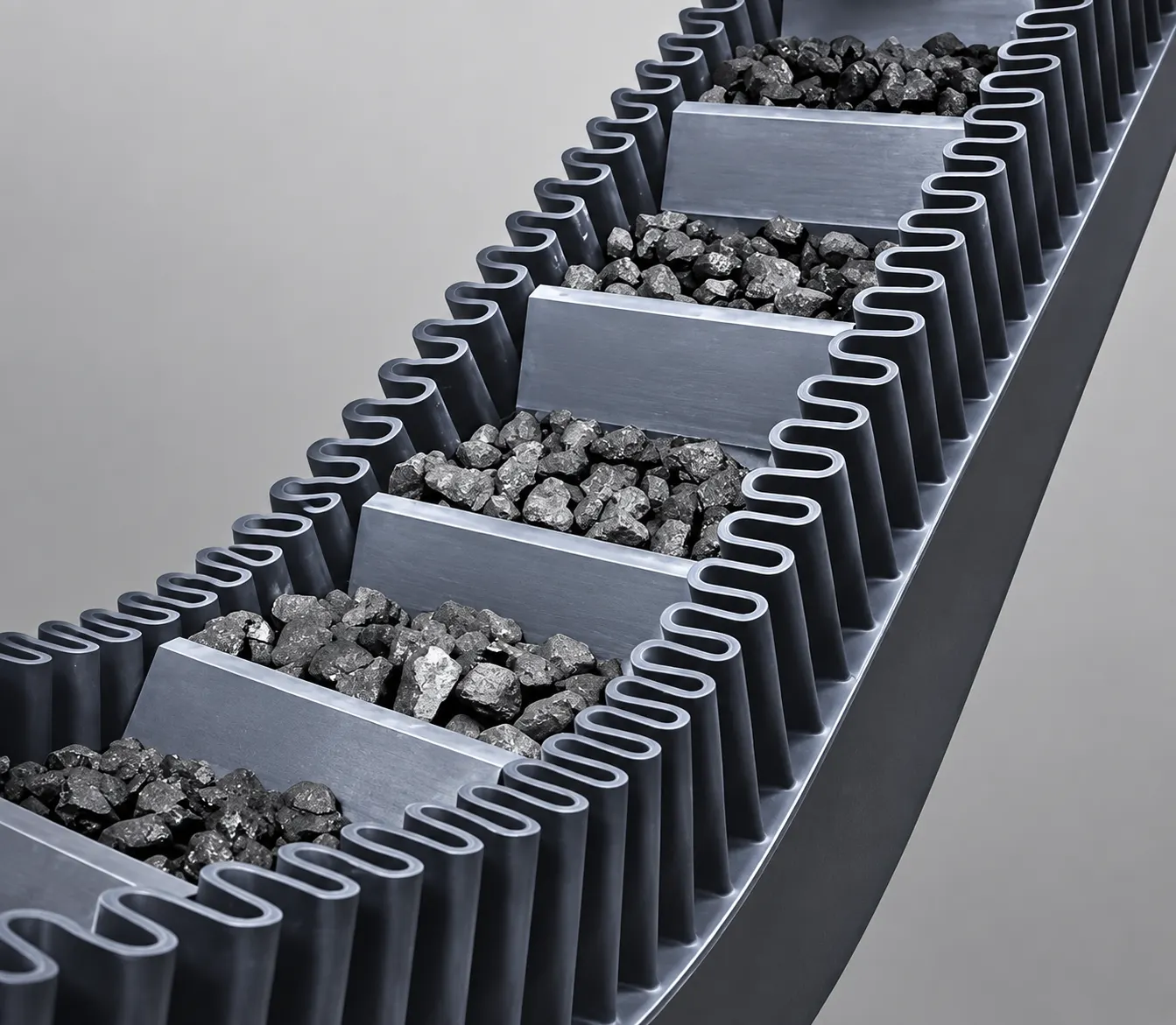

Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, with less space and requirement, no transfer point, low maintenance and big capacity. They are purposefully engineered for cross-stabilization base to deliver better stiffness values while having extremely low elongation. To ensure that the best quality polyester textiles get used in their construction. We regularly produce sidewall belts up to 1800mm in width.
CORE COMPOUNDING
Cross-stabilized base carcass (XE, XE+2, XE+MB+2) with hot-vulcanized corrugated sidewalls and transverse cleats
FEATURES
Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, with less space and requirement, no transfer point, low maintenance and big capacity. They are purposefully engineered for cross-stabilization base to deliver better stiffness values while having extremely low elongation. To ensure that the best quality polyester textiles get used in their construction. We regularly produce sidewall belts up to 1800mm in width.

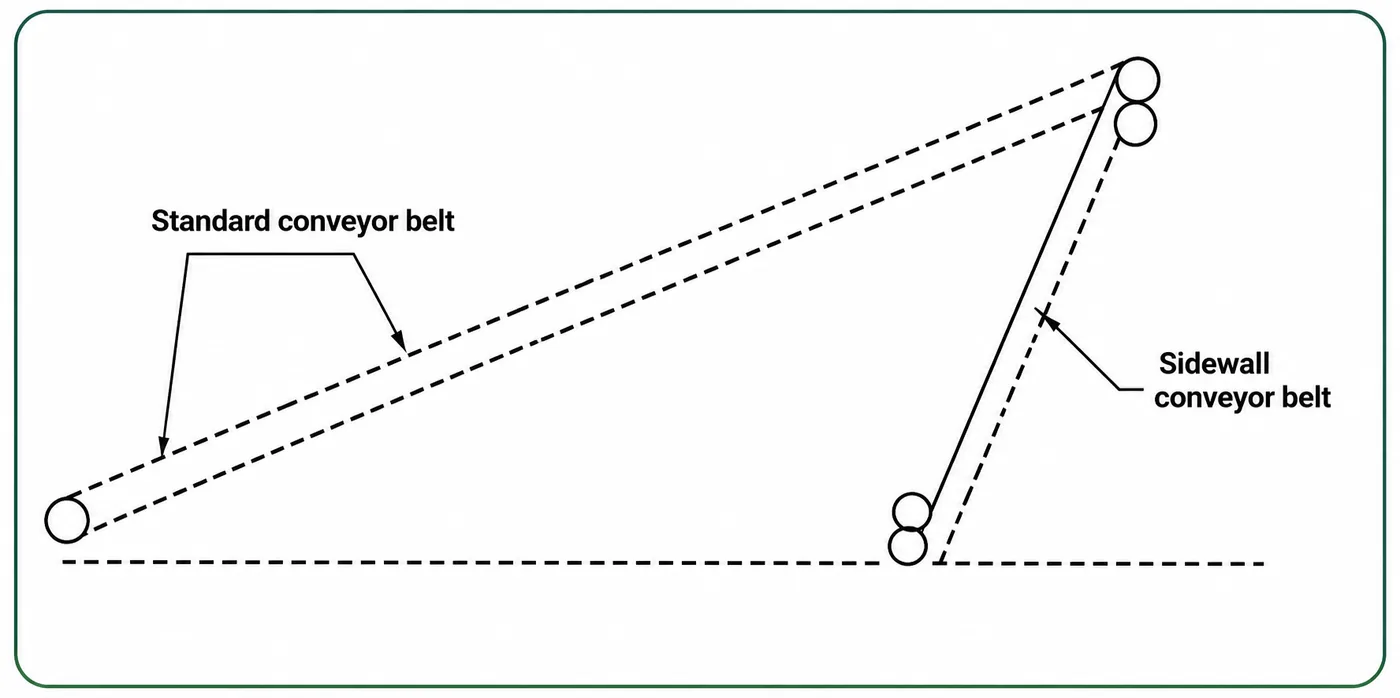

Difference Between angle of a normal conveyor belt vs Sidewall Conveyor Belt
Sidewall conveyor belts enable steep and vertical (up to 90°) elevation in confined spaces, achieving significant cost and space savings compared to standard conveyor belts that require sprawling horizontal layout distances.

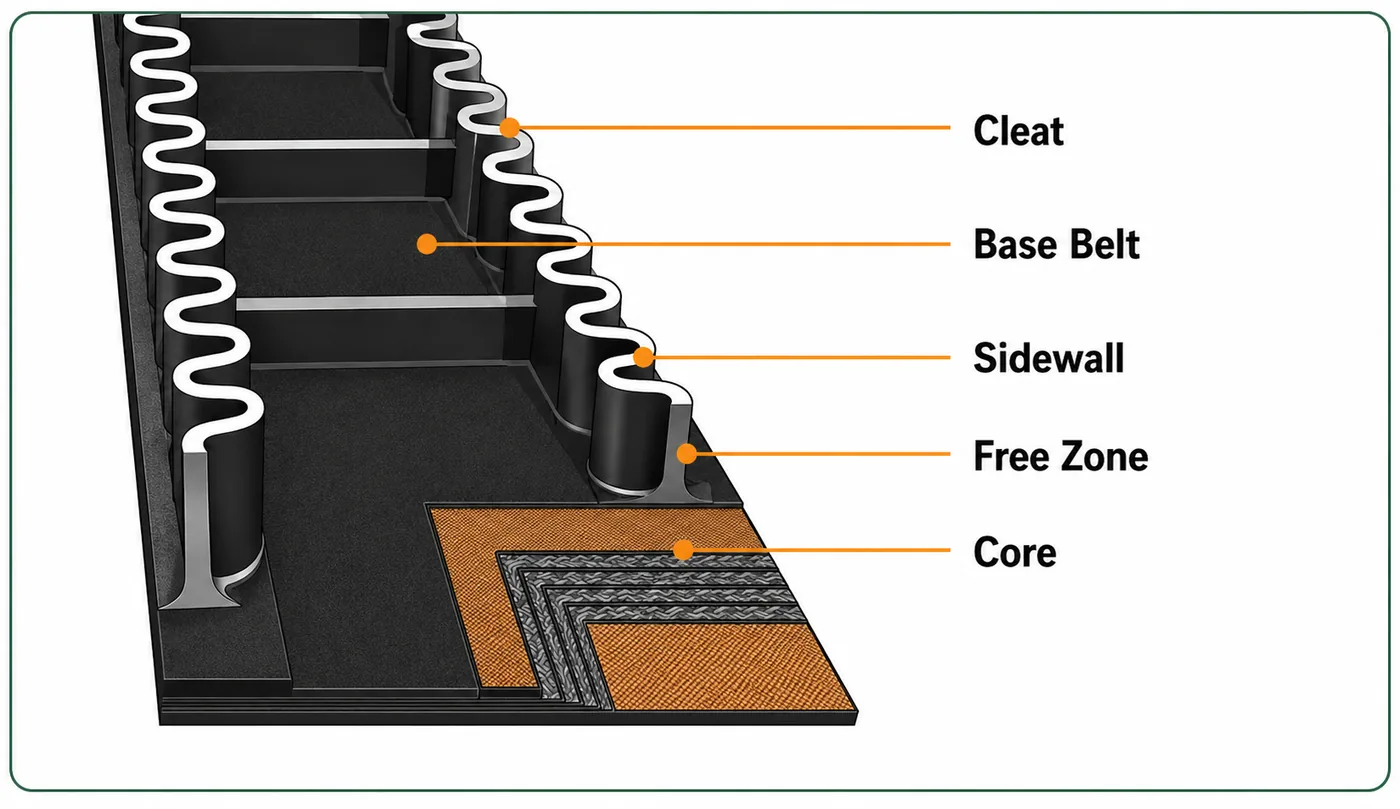

Cleat
Transverse cleats hot-vulcanized to the base belt for lifting high-capacity bulk materials at steep angles.
Base Belt
Cross-stabilized base belt providing transverse rigidity while maintaining longitudinal flexibility around drive pulleys.
Sidewall
Corrugated flexible sidewalls that retain conveyed material and prevent lateral spillage during vertical conveyance.
Free Zone & Core
Lateral margins for return support rollers and high-quality polyester textile core delivering minimal elongation.
Need a Sidewall Conveyor Belt?
Share your high-angle or vertical conveying specifications below including cleat type (T, C, TC, TS, XS-T, MBS, TCS-S), sidewall height, belt width (up to 1800mm), and base belt structure (XE, XE+2, XE+MB+2) with our engineering team.
CLEATS SPECIFICATIONS (T', T, C, TC)
| CLEATS TYPE | T' | T | C | TC | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Structure |  |  |  |  | ||||||||||||||||||
| Height (mm) | 35 | 40 | 20 | 35 | 55 | 75 | 90 | 110 | 140 | 180 | 230 | 35 | 55 | 75 | 90 | 110 | 75 | 90 | 110 | 140 | 180 | 230 |
| Belt Width (mm) | 110 | 110 | 40 | 55 | 80 | 80 | 110 | 110 | 160 | 160 | 175 | 55 | 75 | 80 | 110 | 110 | 80 | 110 | 110 | 160 | 160 | 175 |
CLEATS SPECIFICATIONS (TS, XS-T, MBS, TCS-S)
| CLEATS TYPE | TS | XS-T | MBS | TCS-S | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Structure |  |  |  |  | ||||||||||||||||||
| Height (mm) | 110 | 140 | 180 | 230 | 250 | 280 | 360 | 230 | 250 | 280 | 360 | 110 | 140 | 180 | 230 | 250 | 280 | 360 | 230 | 250 | 280 | 360 |
| Belt Width (mm) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 210 | 220 | 230 | 230 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 225 | 225 | 225 | 230 |
BASE BELT TYPE SPECIFICATIONS
| BASE BELT TYPE | XE (Cross Rigid) | XE+2 (2ply XE) | XE+MB (Metal Breaker)+2 |
|---|---|---|---|
| Structure |  |  |  |
Applications Across Industries
Horizontal, Sloping & Vertical High-Angle Conveyance (Up to 90°)
Proven Application Sector
Confined Space High-Capacity Elevation (Single Belt Operation)
Proven Application Sector
Mining & Quarrying (Zero Rollback Handling)
Proven Application Sector
Power, Cement & Steel Plants (Eliminates Transfer Points)
Proven Application Sector
Fertilizer & Chemical Bulk Material Elevation
Proven Application Sector
